grandMA3processing units

Product summary

SKU: MA4010508

Rollover image to zoom

Rollover image to zoom

Rollover image to zoom

Rollover image to zoom

Rollover image to zoom

MA grandMA3 processing unit XL
MA grandMA3 processing unit XL
MA grandMA3 processing unit L
MA grandMA3 processing unit M

Contact your local ACT products dealer

Description

Expanding the grandMA3 system is simple with addition of grandMA3 processing units! The grandMA3 processing units expand the system and offer frame-synchronous calculation of the parameters within the MA-Net3 environment.

The grandMA3 processing units are designed for rack mounting and all models are only 2RU, allowing for efficient touring solutions. Each model is equipped with 8 DMX outputs for frame-synchronous DMX output throughout the network. Additional frame-synchronous DMX outputs are available with the addition of grandMA3 xPort Nodes.

grandMA3 processing units offer a perfect system overview on the integrated touchscreen. This easy access to important functions allows for best maintenance if installed in a dedicated rack whilst every function can be monitored from the grandMA3 session.

For larger systems it is suggested to keep the grandMA3 processing units in a centralized position for parameter expansion and to use grandMA3 xPort Nodes to distribute and output the frame-synchronous DMX data.

Specifications

Model M: Expands the system by 4,096 parameters and offers Mode2 expansion of 4,096 parameters

Model L:  Expands the system by 8,192 parameters and offers Mode2 expansion of 4,096 parameters

Model XL:  Expands the system by 16,384 parameters and offers Mode2 expansion of 4,096 parameters

All Models:

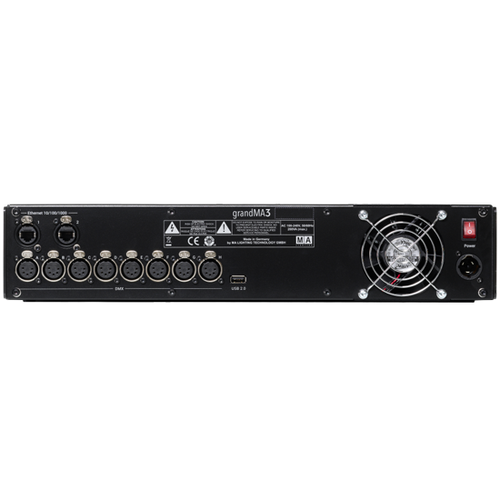

1 x powerCON TRUE1 (Female connector included)
2 x etherCON/RJ45
8 x DMX512-A Out (5pin XLR female)
3 x USB 2.0 (type A)
